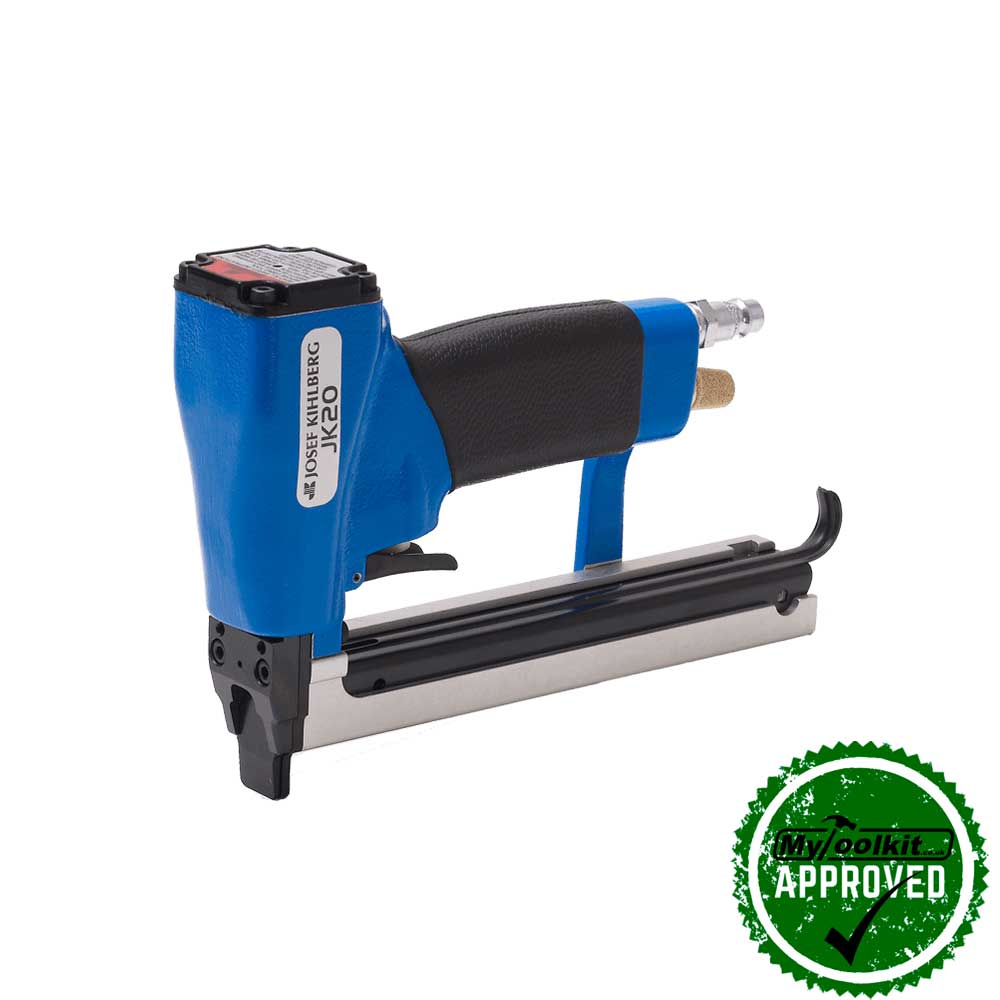

Josef Kihlberg 80 Series Stapler JK20A680
improve your furniture and upholstery work with the Josef Kihlberg 80 Series Stapler JK20A680, offering rapid stapling at up to 30 staples per second. This ergonomic tool switches effortlessly between automatic and single-shot modes, providing versatile, efficient performance for professional joiners. With low noise and negligible recoil, it ensures comfort and precision throughout your workday.
Additional Information
Description
Josef Kihlberg 80 Series Stapler JK20A680
It’s difficult to put into words how great this tool is…but we’ll give it a go!
The Swedish-manufactured Josef Kihlberg 80 Series JK20A680 is a pneumatic tool for the professionals in the furniture, bed and joinery industry. The JK20A680 has an ergonomic design that will help to increase productivity and therefore profitability.
The tool has many features to help with this workplace efficiency. The automatic operation of the stapler is very fast, up to 30 staples/second (1,700 per minute), and can be easily changed from zero to the maximum by means of a set screw. If necessary, automatic operation can be switched off by pushing a button. This way, you can easily switch between single-shot and automatic to suit your needs. This unique design makes the tool suitable for a variety of applications and work environments. Another added bonus – the tool has a very low noise level and negligible recoil to make prolonged use more comfortable. Take a look at the matching 80 Series Staples; this tool drives leg lengths between 6mm and 14mm and we even have a Grade 304 Stainless Steel finish available!
Specifications
- Exhaust Type: Rear
- Trigger Type: Automatic
- Safety: No
- Rubber Grip: Yes
- Power: Air (Compressor)
- Loading: Top
- Fastener Type: 22 Gauge 80 Series 12.8mm Crown Staples 4-16mm
- Nose Type: Semi-Long
- Belt Hook: No
- Easy Clear Jam: No
- Carry Case: No
- Dry Fire Lockout: No
- Fastener View: No
- Usage: Pro Industrial
- Weight: 1.5Kg
- Length: 365mm
- Width: 43mm
- Height: 150mm
- Magazine capacity: 286 fasteners
- Nose length: 14mm
- Recommended working pressure: 70-90 psi
- Air consumption per driving operation at 6 bar operating pressure: 0,2 litres
- Lubrication: Yes
- CE declared: Yes
- Noise characteristic levels according to: EN 12549
- A-weighted single-event emission sound pressure level at work station:85 dB
- · A-weighted sound energy level: 91 dB
Uses
Excellent tool for:
- Furniture
- Beds
- Upholstery
- Boards
- Wood to wood
Warranty
Kilhberg offer different warranty periods for different parts. Here is a breakdown of what is covered and for how long.
12 Month Warranty
This warranty covers all housing and the cap of the tool. This warranty does not cover normal wearing parts such as the bumper, driver blades, O-rings, and piston rings.
