Why Your Nail Gun Keeps Jamming: Fastener, Tool or Setup Issue?
A nail gun jam usually starts with one simple problem: the nail is not travelling cleanly through the tool.
That might be caused by the fastener. It might be the magazine or nose of the tool. It could be air pressure, material, firing technique or wear inside the nailer.
For trade users, repeated jams are more than annoying. They slow the job down, damage materials, interrupt production and put extra strain on the tool.
The solution is not to keep forcing the nailer or turning the pressure up. The better approach is to check the full setup: fastener, tool and application.
At The MTK Group, we help customers match nailers, collated nails and applications properly, so the tool fires consistently and the fixing does the job it is meant to do.
Check Safety First
Before clearing any jam, disconnect the nailer from its air supply or power source.
Never inspect the nose, magazine or driver area while the tool is still connected and ready to fire. Remove the nails where possible and follow the manufacturer’s guidance before clearing the jam.
It only takes a moment, but it matters.
The Fastener Is Wrong or Damaged
One of the most common reasons a nail gun keeps jamming is the fastener.

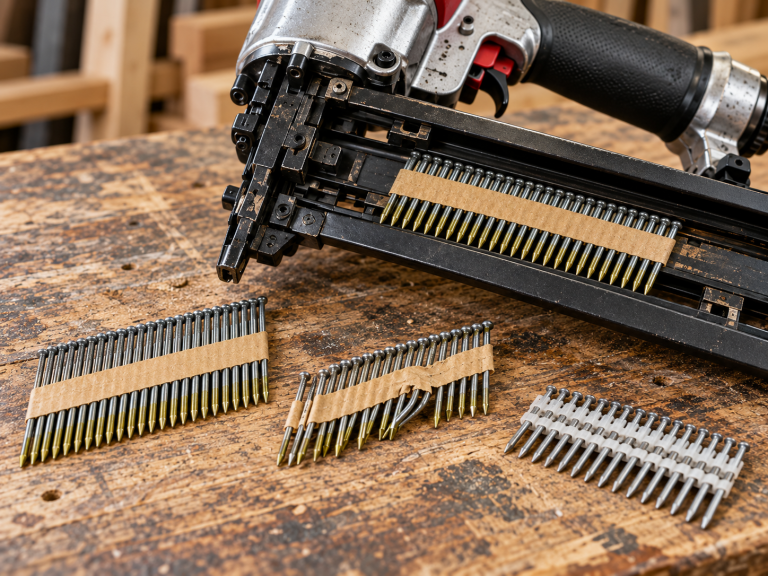

A nail can look close enough and still be wrong for the tool. Length, diameter, head style, shank type, collation angle and collation type all affect how the nail feeds and fires.
For example, a nailer designed for 34° strip nails needs the right strip nail angle and collation. If the nail does not sit correctly in the magazine or nose, the tool can misfeed, fire inconsistently or jam.

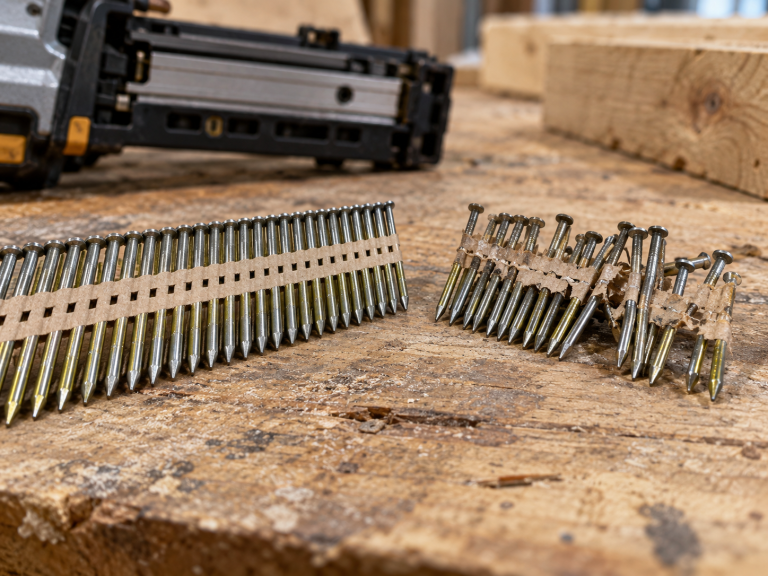

Damaged collation can cause the same problem.
If strip nails are bent, broken, loose or badly stored, they may not move smoothly through the magazine. If coil nails are crushed or distorted, the tool may struggle to pull the next nail into position.
This is why collated nails need to be kept straight, clean and dry. If the nail gun starts jamming after a new box of nails is opened, check the fasteners before blaming the tool.
The Magazine or Nose Is Not Feeding Cleanly
The magazine is where many jams begin.
If nails are not moving forward properly, the tool may fire without a nail, push the nail at the wrong angle or trap it before it reaches the nose.
This can happen if the magazine is dirty, the pusher is sticking, the spring is weak or broken collation is sitting inside the rail. Dust, resin, timber fibres and small offcuts can all affect the feed.
The nose area matters too.
If debris builds up around the firing point, the nail may not sit cleanly before it is driven. A nail that enters the nose slightly out of position can bend, jam or damage the material.
In busy workshops and production environments, a quick clean around the magazine, nose and driver channel can often solve problems that look much bigger than they are.
Air Pressure and Setup Problems
Air pressure can make jamming worse.
If the pressure is too low, the nail may not drive fully. This can leave nails proud, cause weak firing and make the tool feel inconsistent.
If the pressure is too high, the nailer may cycle too aggressively. This can overdrive nails, damage the material and put unnecessary strain on the internal parts.
More pressure is not always the answer.
The aim is to use enough pressure to drive the nail cleanly and consistently without forcing the tool harder than needed.
Tool position also matters. If the nose is not held firmly against the material, the nail can enter at a poor angle. This is common near edges, on uneven timber or when working in awkward positions.
A nailer needs stable contact with the workpiece. If the tool is bouncing, slipping or being fired before it is properly seated, jams become more likely.
The Material Is Making the Job Harder
Sometimes the problem is not the nailer. It is the material.
Hard timber, knots, dense boards, treated timber and awkward fixing points can all make the nail harder to drive. If the nail hits resistance, it may bend, deflect or fail to seat properly.
A nail that works well in softwood may not perform the same way in dense hardwood or treated timber. The nail length, shank type, finish and tool pressure all need to suit the application.
This is especially important in garden buildings, timber framing, pallets, crates, cladding and production work where material can vary from one job to the next.
If the material has changed and the jams have started, the setup may need to change too.
The Tool May Need Cleaning or Servicing
If the fasteners are correct and the setup is right, repeated jamming may point to the tool itself.
A worn driver blade, tired seals, damaged nose, weak magazine spring or dirty feed system can all affect how the nail is driven.
The signs are usually repeated problems: jams, misfires, weak firing, nails not driving fully or the tool working well one moment and poorly the next.

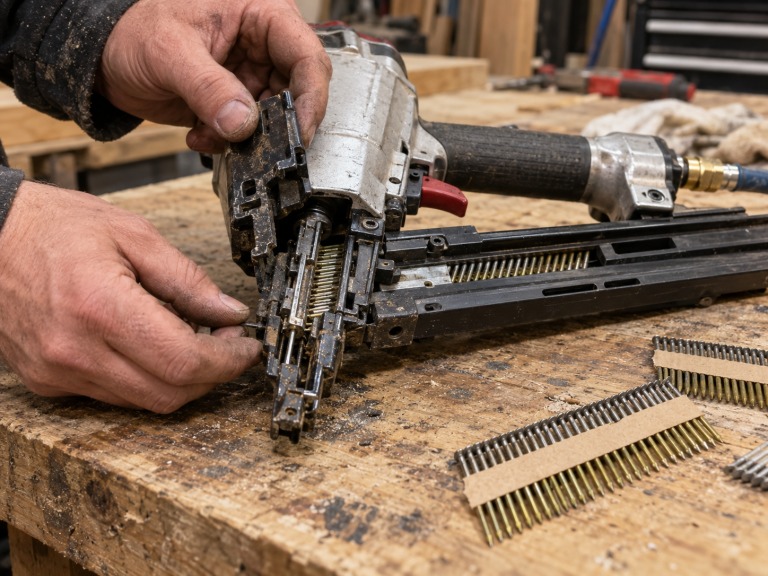

This is where tool maintenance matters. A nailer that is used every day needs regular cleaning, correct lubrication and occasional servicing.
If the same nailer used to work well with the same fasteners and material, but now keeps jamming, it may need servicing or repair.
Quick Checks When a Nail Gun Keeps Jamming
Before replacing the tool, check the basics.
- Are the nails correct for the nailer?
- Is the collation angle right?
- Are the nails straight and undamaged?
- Is the magazine clean?
- Is the pusher moving freely?
- Is there build-up in the nose?
- Is the air pressure too high or too low?
- Is the tool being held firmly against the material?
- Has the timber or board changed?
- Is the tool due for cleaning or servicing?
Most jamming problems come back to one of these areas.
Final Thoughts
When a nail gun keeps jamming, the cause is not always the tool.
It could be the fastener, the collation, the magazine, the nose, the air pressure, the material or wear inside the nailer.
The answer is not to keep forcing it through the job. A better fix is to check the full setup and make sure the nail, tool and application all match.
