Choosing the Right Upholstery Staples: 71 Series vs 80 Series
When it comes to upholstery, the right staple can make all the difference. Whether you’re a professional upholsterer or tackling a DIY project, understanding the differences between staple types will help you achieve a secure and lasting finish. Two of the most commonly used staples in the upholstery industry are the 71 Series and 80 Series, but which one is right for your job?

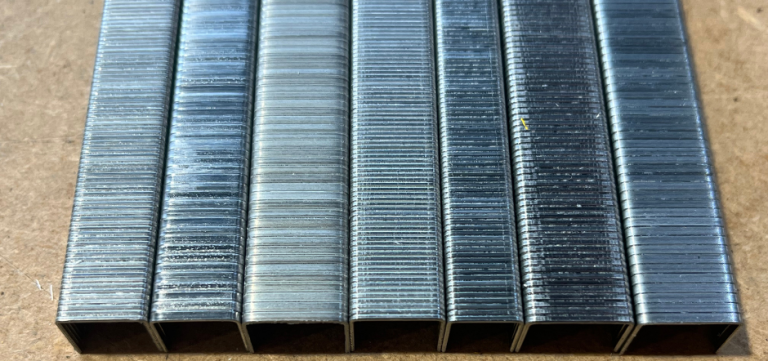

The Key Differences Between 71 Series and 80 Series Staples
Both 71 Series and 80 Series staples are fine wire staples, ideal for securing fabric, foam, and other upholstery materials. However, they have slight differences that can affect performance:
71 Series Staples:
🔹9mm crown width
🔹22-gauge wire (slightly thinner)
🔹Available in leg lengths from 3mm – 16mm
🔹Boxed in quantities of 20,000 (for leg lengths up to 12mm) or 10,000 (for 14mm & 16mm)
The 71 Series is a go-to choice for precision upholstery work. Thanks to the finer 22-gauge wire and narrower crown, they leave a more discreet finish, particularly important when working with delicate or visible fabrics.
Importantly, 71 Series staples are available from as short as 3mm, making them ideal for very thin or lightweight materials where longer legs would risk breakthrough.

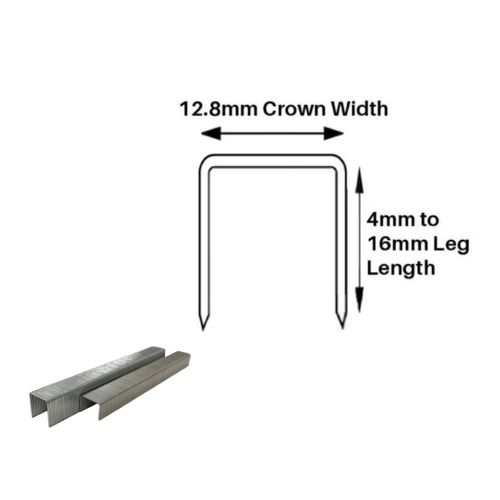

80 Series Staples:
🔹12.8mm crown width
🔹21-gauge wire (slightly thicker)
🔹Available in leg lengths from 4mm – 16mm
🔹Boxed in quantities of 10,000
The 80 Series offers a wider crown and slightly heavier wire gauge, providing additional holding power. This makes them better suited to more demanding upholstery applications.
Choosing the Right Upholstery Staple
The choice between 71 Series and 80 Series often depends on the material you’re working with and the stapler you’re using. Here are some key points to consider:
✅ 71 Series Staples
🔹Best for lightweight upholstery fabrics, delicate materials, or thin boards
🔹The thinner gauge and smaller crown width make them less visible, reducing the risk of damaging fine fabrics
✅ 80 Series Staples
🔹Best for heavier upholstery fabrics, denser foam, and more robust applications
🔹The wider crown provides extra holding power, making them ideal for securing materials under tension
Other Upholstery Staple Options
If you’re working with particularly delicate fabrics or need something different, you might also consider:
🔹 140 Series Staples (Arrow T50) – With a 10.6mm crown and a flat wire gauge, these staples help prevent tearing and are ideal for securing delicate fabrics.
🔹 Stainless Steel Staples – If you’re working on an outdoor project, boat interiors, or any environment with high humidity, stainless steel staples offer excellent corrosion resistance.
Need Advice on Staple Selection?
At MTK, we know staple compatibility and material choice can make or break a job. If you’re unsure which type to use for your project, we’re here to help. Our team provides expert, impartial advice to ensure you get the best solution for your needs.
